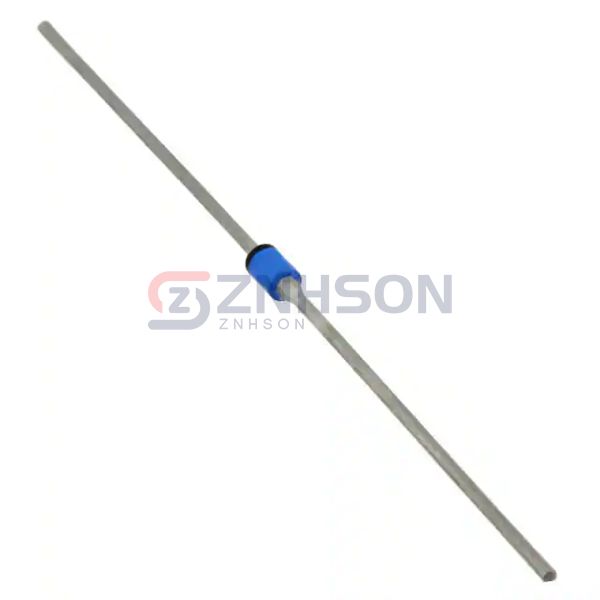

1N4122/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$2.54
Available to order
Reference Price (USD)
1+
$2.53500
500+
$2.50965
1000+
$2.4843
1500+
$2.45895
2000+
$2.4336
2500+
$2.40825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N4122/TR by Microchip Technology is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N4122/TR is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 36 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 200 Ohms
- Current - Reverse Leakage @ Vr: 10 nA @ 27.38 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AA, DO-7, Axial
- Supplier Device Package: DO-7 (DO-204AA)
