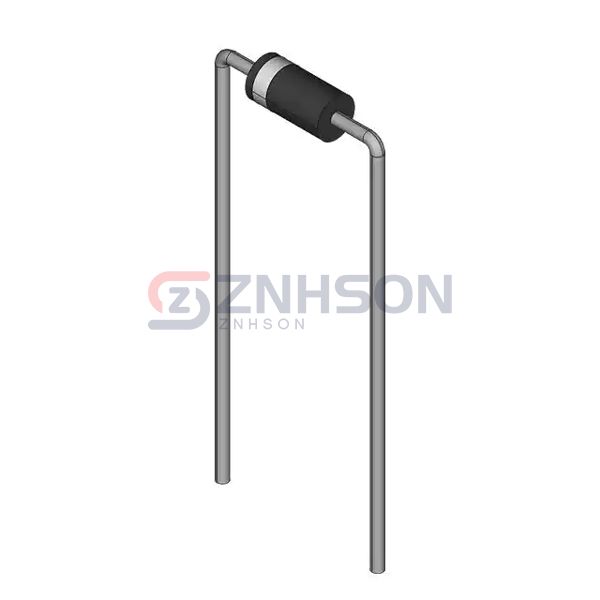

1N4744A-T50R
Fairchild Semiconductor
Fairchild Semiconductor
DIODE ZENER 12V 1W 5% UNIDIR
$0.05
Available to order
Reference Price (USD)
1+
$0.05000
500+
$0.0495
1000+
$0.049
1500+
$0.0485
2000+
$0.048
2500+
$0.0475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N4744A-T50R by Fairchild Semiconductor is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N4744A-T50R is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 15 V
- Tolerance: ±5%
- Power - Max: 1 W
- Impedance (Max) (Zzt): 14 Ohms
- Current - Reverse Leakage @ Vr: 5 µA @ 11.4 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -65°C ~ 200°C
- Mounting Type: Through Hole
- Package / Case: DO-204AL, DO-41, Axial
- Supplier Device Package: DO-41
