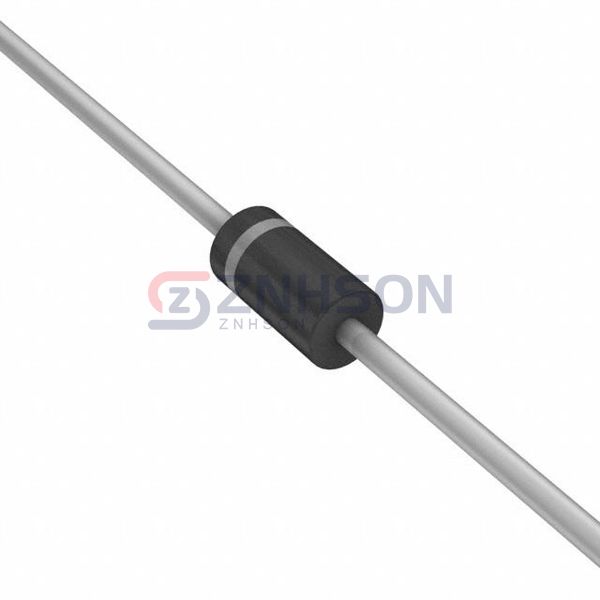

1N4745A
onsemi
onsemi
DIODE ZENER 16V 1W DO41
$0.30
Available to order
Reference Price (USD)
1+
$0.30000
500+
$0.297
1000+
$0.294
1500+
$0.291
2000+
$0.288
2500+
$0.285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N4745A by onsemi is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N4745A is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 16 V
- Tolerance: ±5%
- Power - Max: 1 W
- Impedance (Max) (Zzt): 16 Ohms
- Current - Reverse Leakage @ Vr: 5 µA @ 12.2 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -65°C ~ 200°C
- Mounting Type: Through Hole
- Package / Case: DO-204AL, DO-41, Axial
- Supplier Device Package: DO-41
