1N4746CPE3/TR8
Microchip Technology
Microchip Technology
DIODE ZENER 18V 1W DO204AL
$1.11
Available to order
Reference Price (USD)
1,500+
$0.88450
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N4746CPE3/TR8 by Microchip Technology is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N4746CPE3/TR8 is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 18 V
- Tolerance: ±2%
- Power - Max: 1 W
- Impedance (Max) (Zzt): 20 Ohms
- Current - Reverse Leakage @ Vr: 5 µA @ 13.7 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -65°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: DO-204AL, DO-41, Axial
- Supplier Device Package: DO-204AL (DO-41)
Related Products
Central Semiconductor Corp
CMDZ5250B BK PBFREE
Nexperia USA Inc.
BZX58550-C24-QX
Vishay General Semiconductor - Diodes Division
1N5250B-TAP
Panjit International Inc.
MMBZ5236BW_R1_00001
Comchip Technology
CZRFR52C18-HF
Microchip Technology
1N750A-1/TR
Microchip Technology
JANTXV1N980C-1/TR
Solid State Inc.

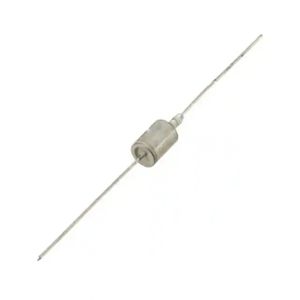

1N3026B
Microchip Technology

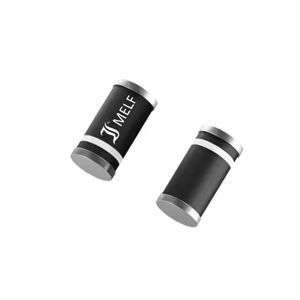

CDLL4492/TR
