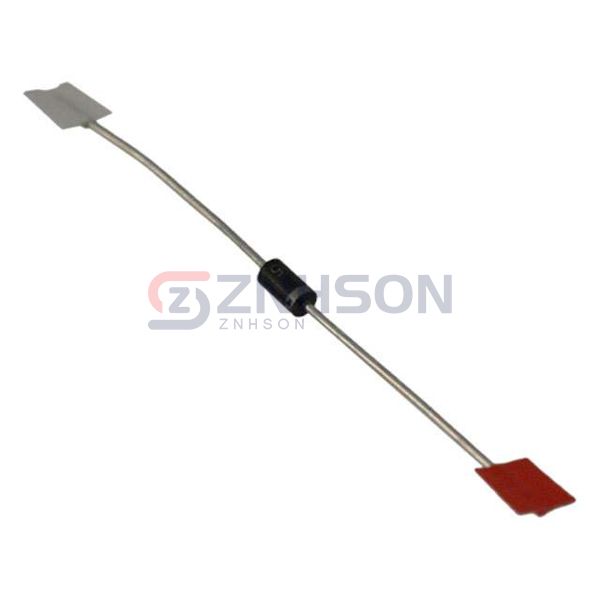

1N4747AP-TP
Micro Commercial Co
Micro Commercial Co
DIODE ZENER 20V 1W DO-41
$0.09
Available to order
Reference Price (USD)
1+
$0.09350
500+
$0.092565
1000+
$0.09163
1500+
$0.090695
2000+
$0.08976
2500+
$0.088825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N4747AP-TP by Micro Commercial Co is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N4747AP-TP is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 20 V
- Tolerance: ±5%
- Power - Max: 1 W
- Impedance (Max) (Zzt): 22 Ohms
- Current - Reverse Leakage @ Vr: 5 µA @ 15.2 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: DO-204AL, DO-41, Axial
- Supplier Device Package: DO-41
