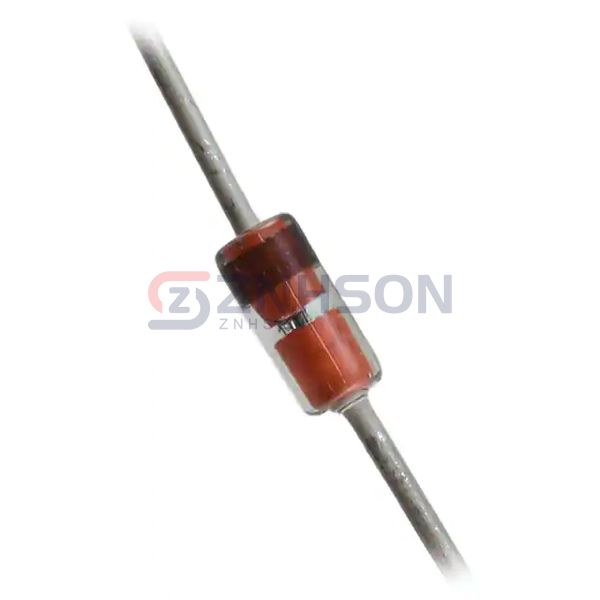

1N5236B
onsemi
onsemi
DIODE ZENER 7.5V 500MW DO35
$0.16
Available to order
Reference Price (USD)
1+
$0.14000
10+
$0.12400
100+
$0.06800
500+
$0.04220
1,000+
$0.02905
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5236B by onsemi is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N5236B is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 7.5 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 6 Ohms
- Current - Reverse Leakage @ Vr: 3 µA @ 6 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -65°C ~ 200°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35
