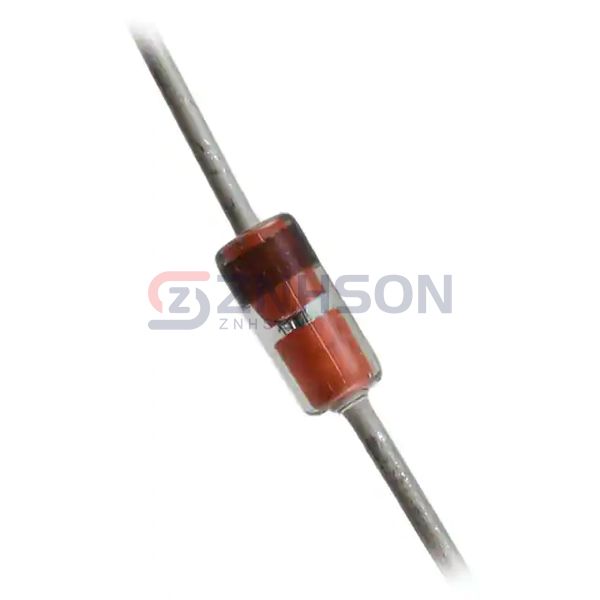

1N5246B
onsemi
onsemi
DIODE ZENER 16V 500MW DO35
$0.16
Available to order
Reference Price (USD)
1+
$0.16000
500+
$0.1584
1000+
$0.1568
1500+
$0.1552
2000+
$0.1536
2500+
$0.152
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5246B by onsemi is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N5246B is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 16 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 17 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 12 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -65°C ~ 200°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35
Related Products
Microchip Technology
CDLL5268A/TR
onsemi
MMBZ5268BLT1G
Vishay General Semiconductor - Diodes Division
MMSZ5256B-HE3-08
Sanken
SJPZ-E20
Solid State Inc.
1N3345R
onsemi
SZ1SMB5934BT3G
Comchip Technology
CZRQR52C22-HF
Vishay General Semiconductor - Diodes Division

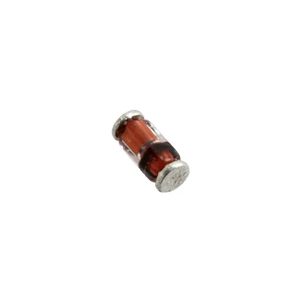

TZQ5236B-GS18
