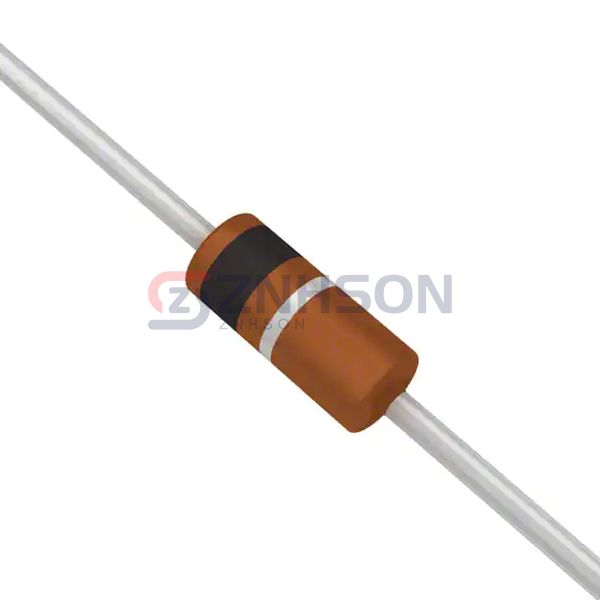

1N5249B-TR
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ZENER 19V 500MW DO35
$0.02
Available to order
Reference Price (USD)
30,000+
$0.02436
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5249B-TR by Vishay General Semiconductor - Diodes Division is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N5249B-TR is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 19 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 23 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 14 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
