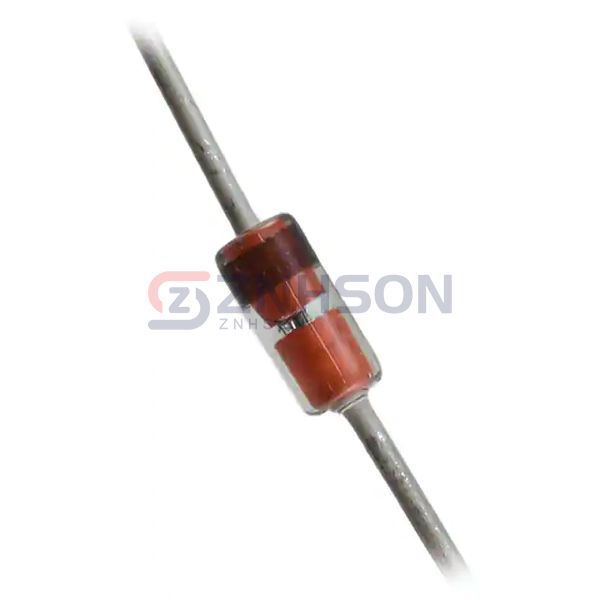

1N5250B
onsemi
onsemi
DIODE ZENER 20V 500MW DO35
$0.18
Available to order
Reference Price (USD)
1+
$0.18000
500+
$0.1782
1000+
$0.1764
1500+
$0.1746
2000+
$0.1728
2500+
$0.171
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5250B by onsemi is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N5250B is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 20 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 25 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 15 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -65°C ~ 200°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35
