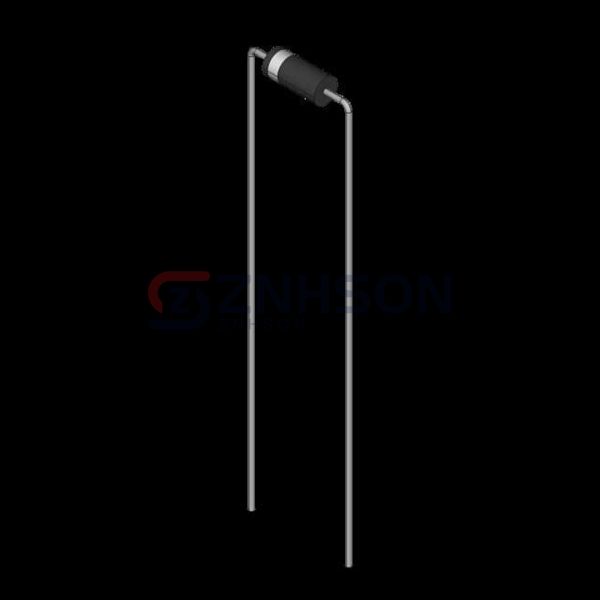

1N5256B
Fairchild Semiconductor
Fairchild Semiconductor
DIODE ZENER 30V 0.5W 5% UNIDIR
$0.02
Available to order
Reference Price (USD)
447+
$2.07199
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5256B by Fairchild Semiconductor is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N5256B is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 30 V
- Tolerance: ±0.5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 49 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 23 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 200 mA
- Operating Temperature: -
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: -
