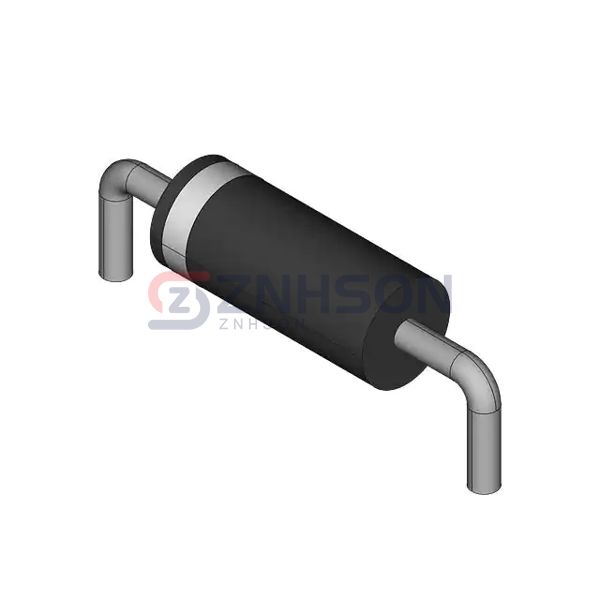

1N5396
Fairchild Semiconductor
Fairchild Semiconductor
RECTIFIER DIODE
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5396 by Fairchild Semiconductor is a high-efficiency single rectifier diode designed for modern electronic applications. Part of the Diodes - Rectifiers - Single category, it provides excellent performance in power conversion and voltage regulation. Its low leakage current and high surge capacity make it suitable for medical imaging devices, data centers, and telecommunications infrastructure. The 1N5396 is also used in smart home devices and wearable technology, ensuring seamless operation. Fairchild Semiconductor's expertise in semiconductor technology guarantees that the 1N5396 delivers top-notch performance in any application.
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 500 V
- Current - Average Rectified (Io): 1.5A
- Voltage - Forward (Vf) (Max) @ If: 1.4 V @ 1.5 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 5 µA @ 500 V
- Capacitance @ Vr, F: 25pF @ 4V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-204AC, DO-15, Axial
- Supplier Device Package: DO-15
- Operating Temperature - Junction: -55°C ~ 150°C
