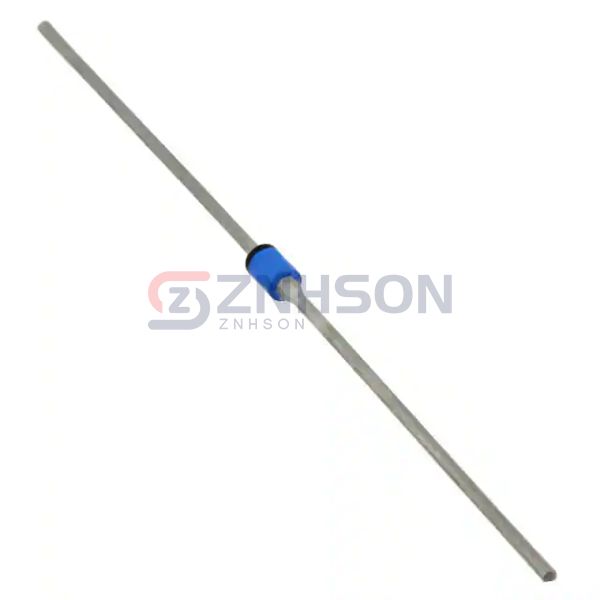

1N5420/TR
Microchip Technology
Microchip Technology
RECTIFIER UFR,FRR
$7.78
Available to order
Reference Price (USD)
1+
$7.78496
500+
$7.7071104
1000+
$7.6292608
1500+
$7.5514112
2000+
$7.4735616
2500+
$7.395712
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 1N5420/TR single rectifier diode by Microchip Technology, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The 1N5420/TR is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose Microchip Technology's 1N5420/TR for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 600 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 9 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 400 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 600 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: B, Axial
- Supplier Device Package: B, Axial
- Operating Temperature - Junction: -65°C ~ 175°C
