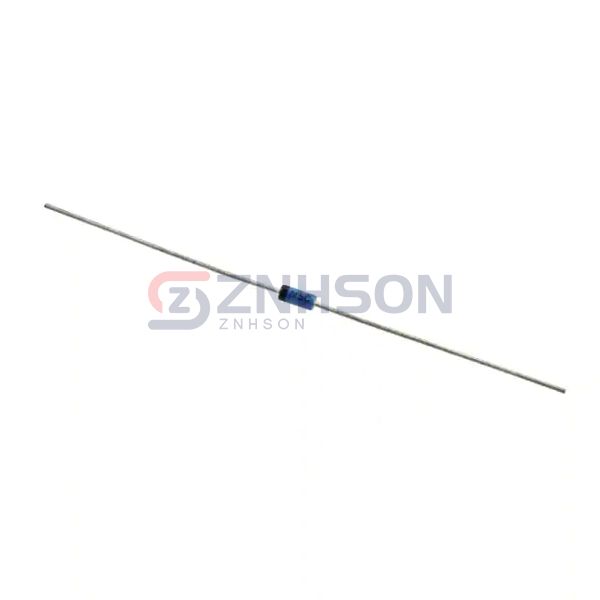

1N5523B/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$2.01
Available to order
Reference Price (USD)
1+
$2.01000
500+
$1.9899
1000+
$1.9698
1500+
$1.9497
2000+
$1.9296
2500+
$1.9095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 1N5523B/TR Zener diode from Microchip Technology is a critical component in the Discrete Semiconductor Products category. This single Zener diode is designed to deliver unmatched voltage regulation, with features such as high surge current capability and low dynamic impedance. It is particularly suited for applications in automotive electronics, where it protects ECUs and sensors from voltage surges. The 1N5523B/TR is also widely used in industrial automation, providing stable voltage references for PLCs and motor drives. Its versatility extends to consumer electronics, where it ensures the longevity of devices like smartphones and laptops by preventing voltage overloads.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 5.1 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 26 Ohms
- Current - Reverse Leakage @ Vr: 2 µA @ 2.5 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C (TA)
- Mounting Type: Through Hole
- Package / Case: DO-204AA, DO-7, Axial
- Supplier Device Package: DO-7
