1N5546B/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$4.01
Available to order
Reference Price (USD)
1+
$4.00502
500+
$3.9649698
1000+
$3.9249196
1500+
$3.8848694
2000+
$3.8448192
2500+
$3.804769
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5546B/TR from Microchip Technology is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the 1N5546B/TR is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 33 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 113 Ohms
- Current - Reverse Leakage @ Vr: 10 nA @ 29.7 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35
Related Products
Microchip Technology
1N4760CP/TR8
Panjit International Inc.
BZX84C33_R1_00001
Microchip Technology
SMAJ4739E3/TR13
Microchip Technology
JAN1N758A-1/TR
Panjit International Inc.
1N5924B_R2_00001
Central Semiconductor Corp

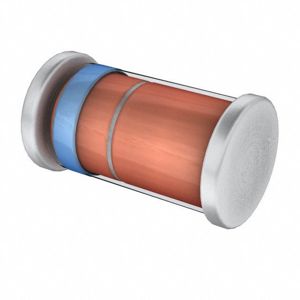

CLL4742A TR PBFREE
Panjit International Inc.
BZT52-B3V6S-AU_R1_000A1
Microchip Technology
JANTX1N4616DUR-1
Microchip Technology

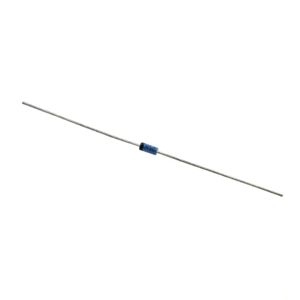

1N970B/TR
