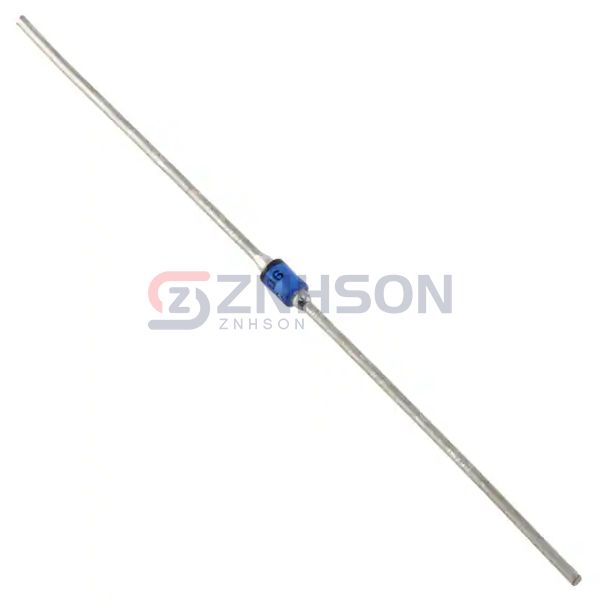

1N5802
Microchip Technology
Microchip Technology
DIODE GEN PURP 50V 1A AXIAL
$6.75
Available to order
Reference Price (USD)
1+
$9.30000
10+
$8.37000
100+
$6.88200
500+
$5.76600
1,000+
$5.20800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5802 from Microchip Technology is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Microchip Technology's 1N5802 for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 50 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 50 V
- Capacitance @ Vr, F: 25pF @ 10V, 1MHz
- Mounting Type: Through Hole
- Package / Case: A, Axial
- Supplier Device Package: -
- Operating Temperature - Junction: -65°C ~ 175°C
Related Products
Littelfuse Inc.
LSIC2SD065D16A
Vishay General Semiconductor - Diodes Division
S1J-M3/61T
Micro Commercial Co
RB751V-40-TP
Vishay General Semiconductor - Diodes Division
V2PM12HM3/H
Vishay General Semiconductor - Diodes Division
BYV26E-TAP
Vishay General Semiconductor - Diodes Division
BYT53F-TR
Vishay General Semiconductor - Diodes Division
UH1PB-M3/85A
Panjit International Inc.
UF1008F_T0_00001
onsemi

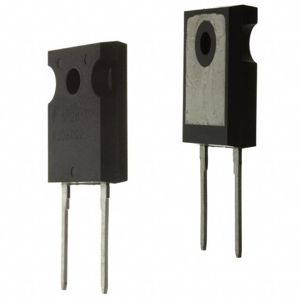

FFSH3065A
