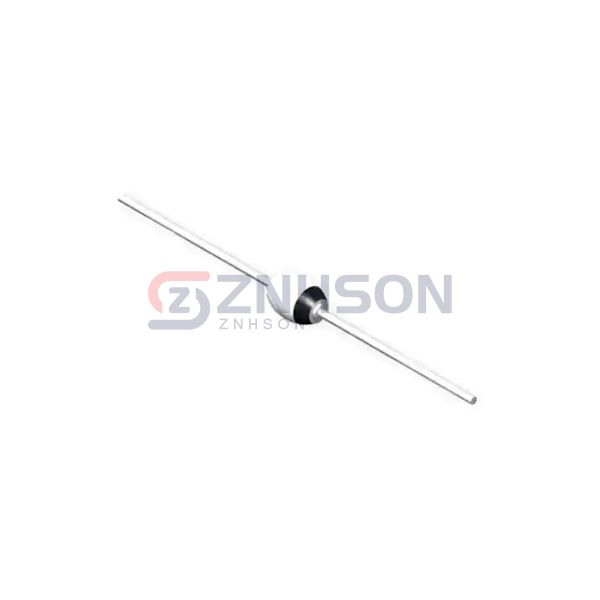

1N5804
Solid State Inc.
Solid State Inc.
RECT 2.5 AMP 100V DO204AP
$1.25
Available to order
Reference Price (USD)
1+
$7.50000
10+
$6.75000
100+
$5.55000
500+
$4.65000
1,000+
$4.20000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5804 by Solid State Inc. is a high-efficiency single rectifier diode designed for modern electronic applications. Part of the Diodes - Rectifiers - Single category, it provides excellent performance in power conversion and voltage regulation. Its low leakage current and high surge capacity make it suitable for medical imaging devices, data centers, and telecommunications infrastructure. The 1N5804 is also used in smart home devices and wearable technology, ensuring seamless operation. Solid State Inc.'s expertise in semiconductor technology guarantees that the 1N5804 delivers top-notch performance in any application.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 2.5A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 100 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-204AP, Axial
- Supplier Device Package: DO-204AP
- Operating Temperature - Junction: -65°C ~ 175°C
