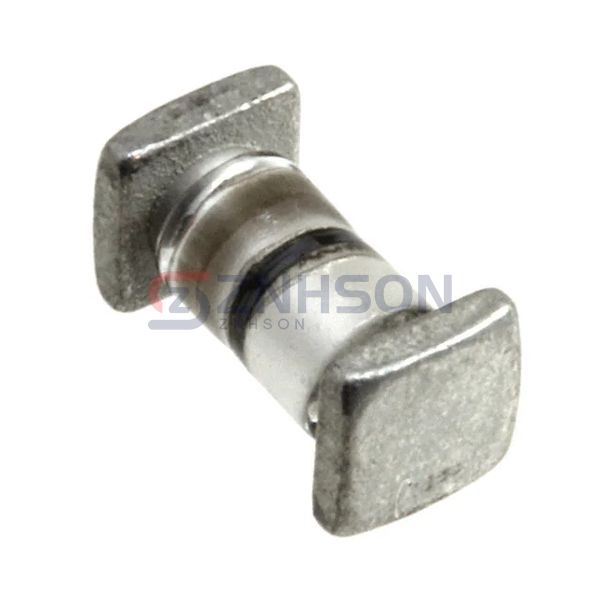

1N5807US/TR
Microchip Technology
Microchip Technology
RECTIFIER UFR,FRR
$8.38
Available to order
Reference Price (USD)
1+
$8.38495
500+
$8.3011005
1000+
$8.217251
1500+
$8.1334015
2000+
$8.049552
2500+
$7.9657025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5807US/TR by Microchip Technology is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the 1N5807US/TR ensures long-term reliability even in harsh operating conditions. Trust Microchip Technology for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 50 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 4 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 30 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 50 V
- Capacitance @ Vr, F: 60pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, B
- Supplier Device Package: B, SQ-MELF
- Operating Temperature - Junction: -65°C ~ 175°C
Related Products
Panjit International Inc.
MBR20H150YD_L2_00001
Vishay General Semiconductor - Diodes Division
FESB16AT-E3/81
Vishay General Semiconductor - Diodes Division
ES1D-M3/5AT
Vishay General Semiconductor - Diodes Division
B160-M3/61T
Diotec Semiconductor

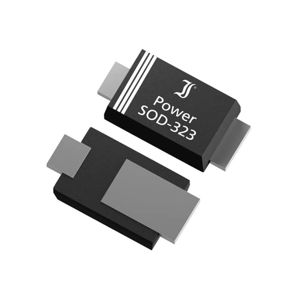

SRL23
Diotec Semiconductor

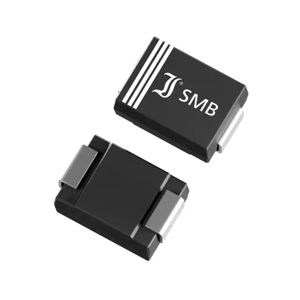

S3JSMB
Vishay General Semiconductor - Diodes Division
AR4PG-M3/86A
Vishay General Semiconductor - Diodes Division

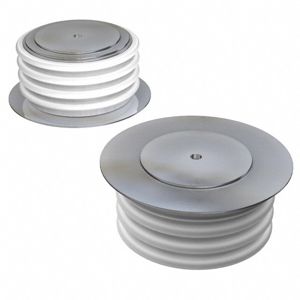

VS-SD1100C16L
