1N5820HA0G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 20V 3A DO201AD
$0.00
Available to order
Reference Price (USD)
2,500+
$0.12705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5820HA0G from Taiwan Semiconductor Corporation is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Taiwan Semiconductor Corporation's 1N5820HA0G for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 475 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 20 V
- Capacitance @ Vr, F: 200pF @ 4V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-201AD, Axial
- Supplier Device Package: DO-201AD
- Operating Temperature - Junction: -55°C ~ 125°C
Related Products
STMicroelectronics
SPV1002D40
Vishay General Semiconductor - Diodes Division
1N5406-E3/51
Vishay General Semiconductor - Diodes Division
MBR16H50-E3/45
Rohm Semiconductor

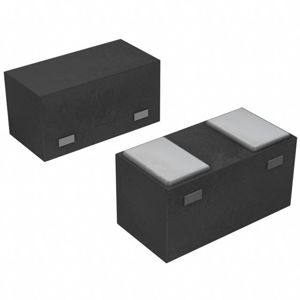

RB521ES-30T15R
Vishay General Semiconductor - Diodes Division
BY229B-800HE3/81
Taiwan Semiconductor Corporation

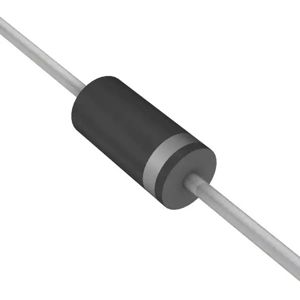

FR157G B0G
Diodes Incorporated

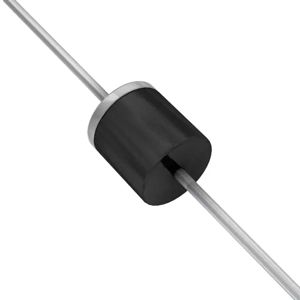

PR6004-T
Micro Commercial Co

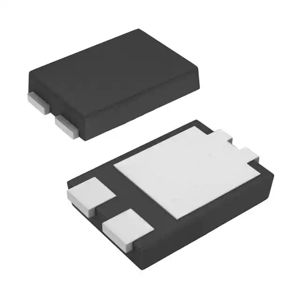

MBR10100ULPS-TP
Taiwan Semiconductor Corporation

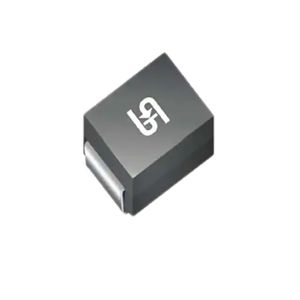

RS3K R7G
