1N5938AG
Microsemi Corporation
Microsemi Corporation
DIODE ZENER 36V 1.25W DO204AL
$3.27
Available to order
Reference Price (USD)
1+
$3.27000
500+
$3.2373
1000+
$3.2046
1500+
$3.1719
2000+
$3.1392
2500+
$3.1065
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5938AG from Microsemi Corporation is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the 1N5938AG is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 36 V
- Tolerance: ±10%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 38 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 27.4 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AL, DO-41, Axial
- Supplier Device Package: DO-204AL (DO-41)
Related Products
Diodes Incorporated
BZX84B11Q-7-F
Vishay General Semiconductor - Diodes Division
1N5222C-TR
Vishay General Semiconductor - Diodes Division
ZPY36-TAP
Diodes Incorporated
BZT52C6V2LP-7
Diodes Incorporated
ZMM5261B-7
Microchip Technology

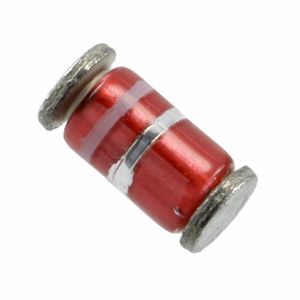

CDLL5544B
Vishay General Semiconductor - Diodes Division

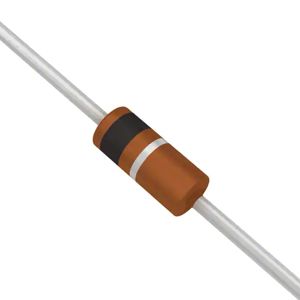

TZX30A-TR
