1N5943P/TR12
Microchip Technology
Microchip Technology
DIODE ZENER 56V 1.5W DO204AL
$1.78
Available to order
Reference Price (USD)
4,000+
$1.32300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 1N5943P/TR12 Zener diode from Microchip Technology is a critical component in the Discrete Semiconductor Products category. This single Zener diode is designed to deliver unmatched voltage regulation, with features such as high surge current capability and low dynamic impedance. It is particularly suited for applications in automotive electronics, where it protects ECUs and sensors from voltage surges. The 1N5943P/TR12 is also widely used in industrial automation, providing stable voltage references for PLCs and motor drives. Its versatility extends to consumer electronics, where it ensures the longevity of devices like smartphones and laptops by preventing voltage overloads.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 56 V
- Tolerance: ±20%
- Power - Max: 1.5 W
- Impedance (Max) (Zzt): 86 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 42.6 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -65°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: DO-204AL, DO-41, Axial
- Supplier Device Package: DO-204AL (DO-41)
Related Products
Microchip Technology
BZV55C47/TR
Microchip Technology
1N4736AE3/TR13
Central Semiconductor Corp
CMHZ5222B BK PBFREE
Microchip Technology
1N4623-1/TR
Vishay General Semiconductor - Diodes Division
TLZ43-GS18
Renesas Electronics America Inc

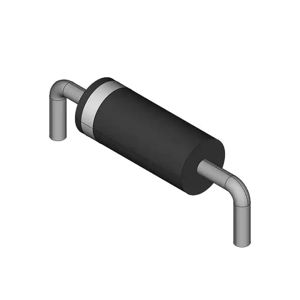

HZS24NB3TA-E
Nexperia USA Inc.

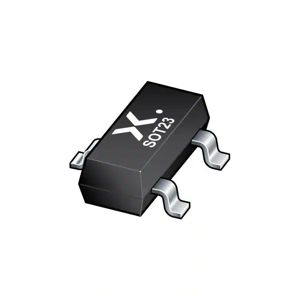

BZX8450-C6V8VL
Comchip Technology

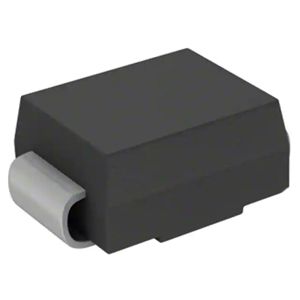

CZRB5363B-HF
