1PGSMB5933
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation

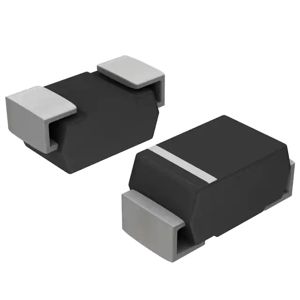

DIODE ZENER 22V 3W DO214AA
$0.18
Available to order
Reference Price (USD)
1+
$0.18039
500+
$0.1785861
1000+
$0.1767822
1500+
$0.1749783
2000+
$0.1731744
2500+
$0.1713705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 1PGSMB5933 Zener diode from Taiwan Semiconductor Corporation is a critical component in the Discrete Semiconductor Products category. This single Zener diode is designed to deliver unmatched voltage regulation, with features such as high surge current capability and low dynamic impedance. It is particularly suited for applications in automotive electronics, where it protects ECUs and sensors from voltage surges. The 1PGSMB5933 is also widely used in industrial automation, providing stable voltage references for PLCs and motor drives. Its versatility extends to consumer electronics, where it ensures the longevity of devices like smartphones and laptops by preventing voltage overloads.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±5%
- Power - Max: 3 W
- Impedance (Max) (Zzt): 17.5 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 16.7 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
