1PGSMB5946H
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 75V 3W DO214AA
$0.19
Available to order
Reference Price (USD)
1+
$0.19198
500+
$0.1900602
1000+
$0.1881404
1500+
$0.1862206
2000+
$0.1843008
2500+
$0.182381
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 1PGSMB5946H Zener diode by Taiwan Semiconductor Corporation, a standout in the Discrete Semiconductor Products lineup. This single Zener diode is engineered for precise voltage regulation, featuring a robust design that ensures long-term durability. With its low leakage current and high surge capability, the 1PGSMB5946H is perfect for critical applications. Typical uses include voltage stabilization in consumer electronics, such as TVs and audio equipment, as well as in medical devices where consistent performance is paramount. The 1PGSMB5946H is also a preferred choice for circuit protection in renewable energy systems, safeguarding inverters and charge controllers from voltage fluctuations.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 75 V
- Tolerance: ±5%
- Power - Max: 3 W
- Impedance (Max) (Zzt): 140 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 56 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
Related Products
Microchip Technology
JANTX1N966C-1/TR
Nexperia USA Inc.
BZX84J-C7V5,115
Microchip Technology
JAN1N4108DUR-1/TR
Vishay General Semiconductor - Diodes Division
MMSZ5239B-E3-08
Vishay General Semiconductor - Diodes Division
MMSZ5267C-HE3-08
Nexperia USA Inc.

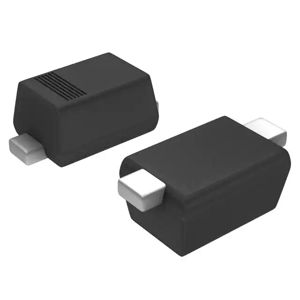

SZMM5Z8V2T5GF
Nexperia USA Inc.

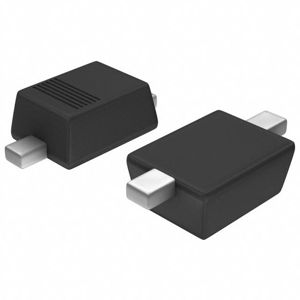

BZX84J-C3V3,115
Microchip Technology

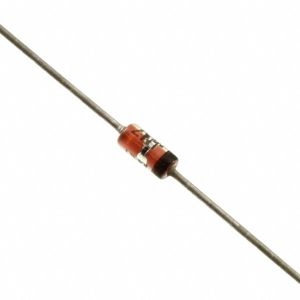

1N5731C
