1PGSMB5947H
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 82V 3W DO214AA
$0.19
Available to order
Reference Price (USD)
1+
$0.19198
500+
$0.1900602
1000+
$0.1881404
1500+
$0.1862206
2000+
$0.1843008
2500+
$0.182381
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 1PGSMB5947H Zener diode from Taiwan Semiconductor Corporation is a critical component in the Discrete Semiconductor Products category. This single Zener diode is designed to deliver unmatched voltage regulation, with features such as high surge current capability and low dynamic impedance. It is particularly suited for applications in automotive electronics, where it protects ECUs and sensors from voltage surges. The 1PGSMB5947H is also widely used in industrial automation, providing stable voltage references for PLCs and motor drives. Its versatility extends to consumer electronics, where it ensures the longevity of devices like smartphones and laptops by preventing voltage overloads.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 82 V
- Tolerance: ±5%
- Power - Max: 3 W
- Impedance (Max) (Zzt): 160 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 62.2 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
Related Products
Nexperia USA Inc.
BZT52-C43X
Vishay General Semiconductor - Diodes Division
BZX384B18-G3-08
Vishay General Semiconductor - Diodes Division
BZG05B5V6-HM3-18
Microchip Technology
1N4106UR/TR
Vishay General Semiconductor - Diodes Division
MMSZ4710-HE3-08
Microchip Technology
CDLL5544A/TR
Diodes Incorporated
BZT52C2V7Q-7-F
Microchip Technology

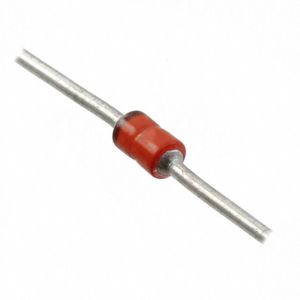

JAN1N3019D-1
Comchip Technology

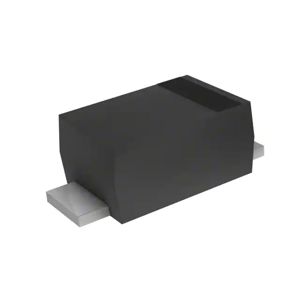

AMMSZ5248A-HF
