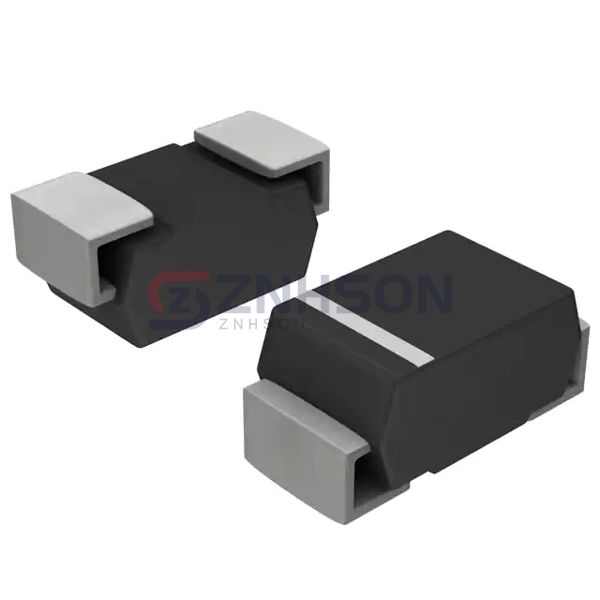

1SMA22CAT3G
onsemi
onsemi
TVS DIODE 22VWM 38.9VC SMA
$0.00
Available to order
Reference Price (USD)
5,000+
$0.28643
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1SMA22CAT3G TVS diode by onsemi offers unmatched protection against voltage transients. With its robust design and high surge current capacity, this diode is ideal for harsh environments. TVS diodes are commonly used in power management, RF systems, and LED lighting. They help prevent damage caused by sudden voltage surges, such as those from lightning or power fluctuations. For instance, the 1SMA22CAT3G can safeguard solar inverters from overvoltage events. Choose onsemi for reliable and efficient circuit protection solutions.
Specifications
- Product Status: Obsolete
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 22V
- Voltage - Breakdown (Min): 24.4V
- Voltage - Clamping (Max) @ Ipp: 38.9V
- Current - Peak Pulse (10/1000µs): -
- Power - Peak Pulse: 400W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 260pF @ 1MHz
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA
