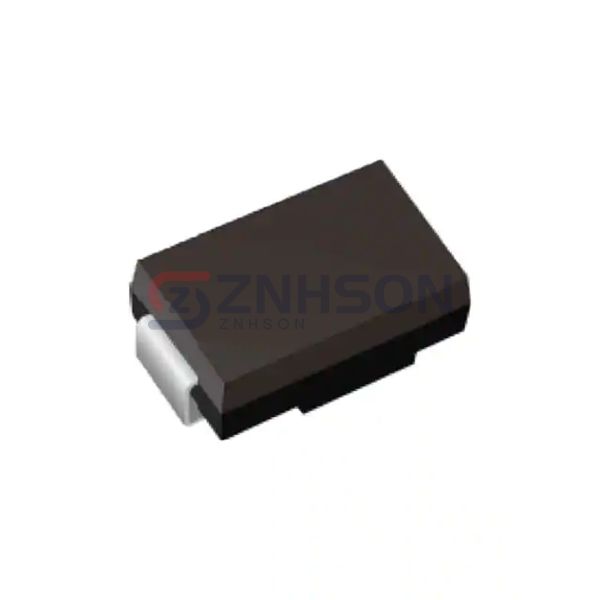

1SMA4745_R1_00001
Panjit International Inc.
Panjit International Inc.
SMA, ZENER
$0.42
Available to order
Reference Price (USD)
1+
$0.42000
500+
$0.4158
1000+
$0.4116
1500+
$0.4074
2000+
$0.4032
2500+
$0.399
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1SMA4745_R1_00001 by Panjit International Inc. is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1SMA4745_R1_00001 is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 16 V
- Tolerance: ±5%
- Power - Max: 1 W
- Impedance (Max) (Zzt): 16 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 12.2 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA (DO-214AC)
Related Products
Vishay General Semiconductor - Diodes Division
BZG05C5V6-HM3-08
Diotec Semiconductor
ZPD33
Vishay General Semiconductor - Diodes Division
BZX384B62-HE3-18
Microchip Technology
SMBJ5381BE3/TR13
Nexperia USA Inc.

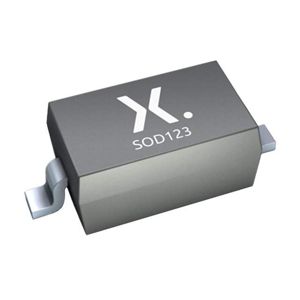

BZT52-C39X
Microchip Technology

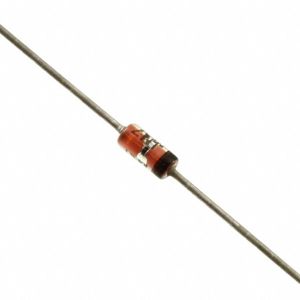

1N4784
Panjit International Inc.
MMSZ5224B_R1_00001
Micro Commercial Co

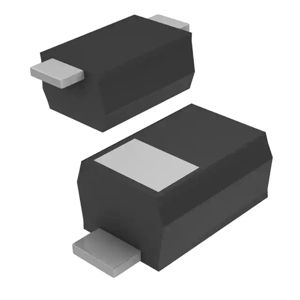

DFLZ24-TP
