1SMA4747H
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 20V 1.25W DO214AC
$0.11
Available to order
Reference Price (USD)
1+
$0.10622
500+
$0.1051578
1000+
$0.1040956
1500+
$0.1030334
2000+
$0.1019712
2500+
$0.100909
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1SMA4747H by Taiwan Semiconductor Corporation is a premium single Zener diode, part of the Discrete Semiconductor Products range. This diode is crafted for precision and reliability, offering features like excellent temperature stability and low reverse leakage current. It is ideal for applications requiring consistent voltage regulation, such as in power supplies for LED lighting and audio amplifiers. The 1SMA4747H is also a key component in telecommunications infrastructure, where it maintains signal integrity by stabilizing voltage levels. Furthermore, it is used in renewable energy systems, such as solar panels and wind turbines, to protect against voltage spikes and ensure efficient energy conversion.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 20 V
- Tolerance: ±5%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 22 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 15.2 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
Related Products
Nexperia USA Inc.
PZU11BL,315
Vishay General Semiconductor - Diodes Division
TLZ11C-GS18
Microchip Technology

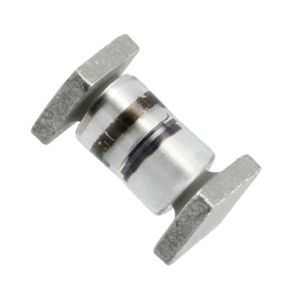

JANTXV1N4466US/TR
Diotec Semiconductor
MM3Z11B
Microchip Technology
JAN1N973BUR-1
Diotec Semiconductor

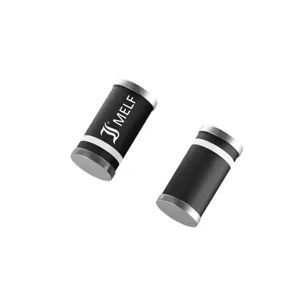

ZMY68B
Diodes Incorporated
MMBZ5252BT-7-F
Taiwan Semiconductor Corporation

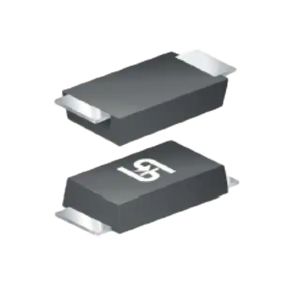

BZD27C16PWH
