1SMA5946
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 75V 1.5W DO214AC
$0.10
Available to order
Reference Price (USD)
1+
$0.09986
500+
$0.0988614
1000+
$0.0978628
1500+
$0.0968642
2000+
$0.0958656
2500+
$0.094867
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1SMA5946 by Taiwan Semiconductor Corporation is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1SMA5946 is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 75 V
- Tolerance: ±5%
- Power - Max: 1.5 W
- Impedance (Max) (Zzt): 140 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 56 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
Related Products
Vishay General Semiconductor - Diodes Division
BZG05B6V8-HM3-18
Vishay General Semiconductor - Diodes Division
BZT52C75-G3-08
Microchip Technology
JAN1N4120DUR-1
Microchip Technology
1PMT5952A/TR13
Comchip Technology
CZRW5240B-G
onsemi
SZBZX84B27LT1G
Microsemi Corporation
1N5937CG
SMC Diode Solutions

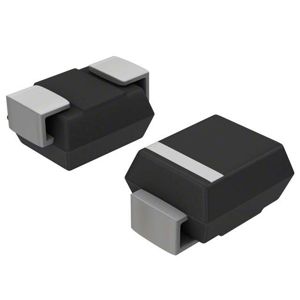

1SMA4742
