1SMA5947H
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 82V 1.5W DO214AC
$0.11
Available to order
Reference Price (USD)
1+
$0.10622
500+
$0.1051578
1000+
$0.1040956
1500+
$0.1030334
2000+
$0.1019712
2500+
$0.100909
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1SMA5947H by Taiwan Semiconductor Corporation is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1SMA5947H is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 82 V
- Tolerance: ±5%
- Power - Max: 1.5 W
- Impedance (Max) (Zzt): 160 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 62.2 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
Related Products
Renesas Electronics America Inc
HZM36NBTL-E
Vishay General Semiconductor - Diodes Division
BZX384C47-E3-18
Vishay General Semiconductor - Diodes Division
BZD17C4V3P-E3-18
Microchip Technology
1N5934BP/TR8
Rohm Semiconductor

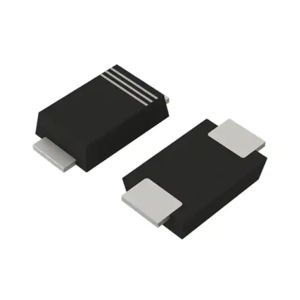

PDZVTR5.6A
Taiwan Semiconductor Corporation
1PGSMB5934HR5G
Nexperia USA Inc.
BZX84-B3V0,215
Vishay General Semiconductor - Diodes Division

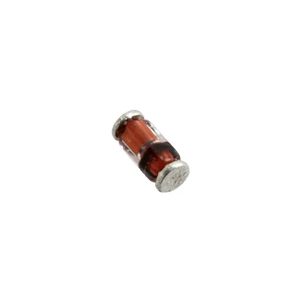

TZQ5222B-GS08
