1SMB5933H
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 22V 3W DO214AA
$0.17
Available to order
Reference Price (USD)
1+
$0.16504
500+
$0.1633896
1000+
$0.1617392
1500+
$0.1600888
2000+
$0.1584384
2500+
$0.156788
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1SMB5933H by Taiwan Semiconductor Corporation is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1SMB5933H is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±5%
- Power - Max: 3 W
- Impedance (Max) (Zzt): 17.5 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 16.7 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
Related Products
Panjit International Inc.
1SMA5941-AU_R1_000A1
Renesas Electronics America Inc
HZ6B1L2TA-E
NTE Electronics, Inc
NTE5266A
Vishay General Semiconductor - Diodes Division
BZG03B36-M3-18
Microchip Technology
1N5259B/TR
Nexperia USA Inc.

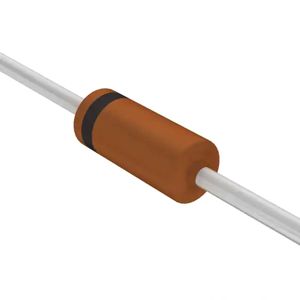

NZX2V7B,133
Diodes Incorporated
DDZX18C-13
Vishay General Semiconductor - Diodes Division

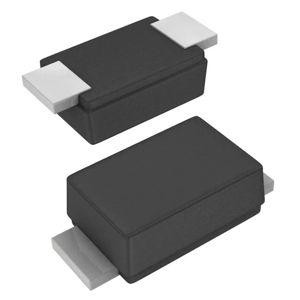

BZD27B30P-M3-08
