1SMB5941
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 47V 3W DO214AA
$0.16
Available to order
Reference Price (USD)
1+
$0.15515
500+
$0.1535985
1000+
$0.152047
1500+
$0.1504955
2000+
$0.148944
2500+
$0.1473925
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1SMB5941 by Taiwan Semiconductor Corporation is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1SMB5941 is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 47 V
- Tolerance: ±5%
- Power - Max: 3 W
- Impedance (Max) (Zzt): 67 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 35.8 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
Related Products
Taiwan Semiconductor Corporation
BZD27C18P RUG
Microchip Technology
JANTX1N4122DUR-1/TR
Microchip Technology
JANTXV1N5522D-1
onsemi
MM3Z16VT1G
Microchip Technology
JANTXV1N973BUR-1/TR
Central Semiconductor Corp

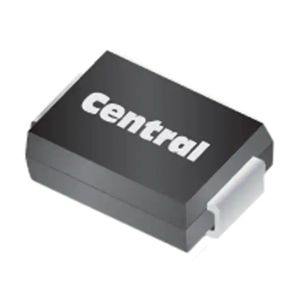

CMZ5366B TR13 PBFREE
Solid State Inc.

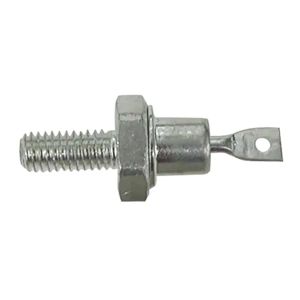

1N2973R
Diotec Semiconductor

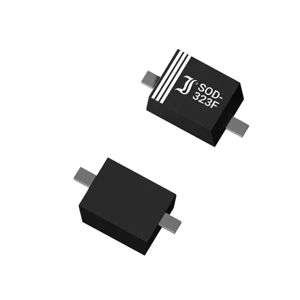

MM3Z16
