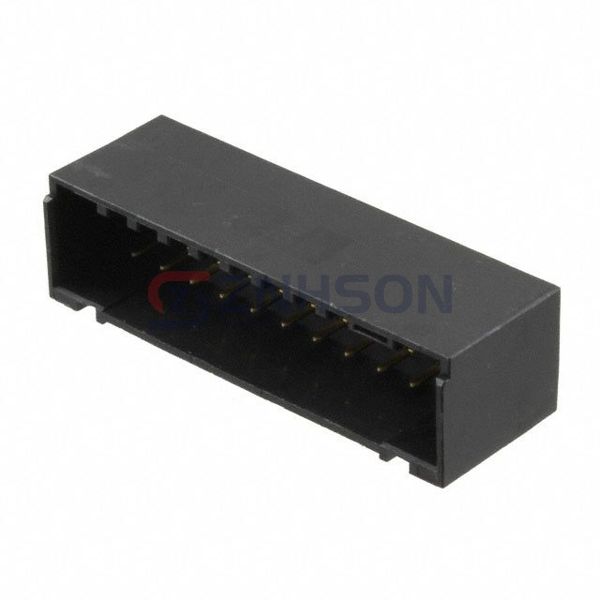

2-1871935-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 22POS 3.5MM
$11.97
Available to order
Reference Price (USD)
1+
$11.33000
10+
$10.87000
30+
$9.96367
50+
$9.51100
100+
$9.28460
250+
$8.37880
500+
$7.92590
1,000+
$7.11066
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 2-1871935-1 rectangular connector header from TE Connectivity AMP Connectors. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 2-1871935-1 is perfect for automotive, industrial, and consumer electronics. TE Connectivity AMP Connectors ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.138" (3.50mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.130" (3.30mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.465" (11.80mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 12.0µin (0.30µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Polyester, Glass Filled
- Features: Board Lock
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 4A
- Voltage Rating: 150V
