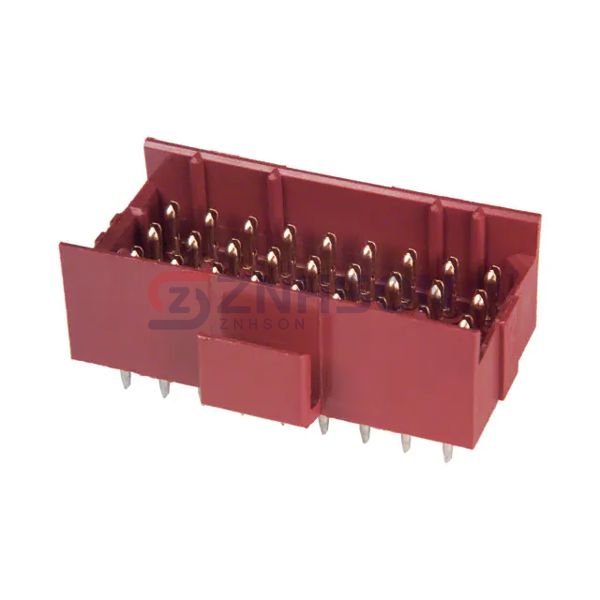

2-640506-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 36POS 4.2MM
$43.57
Available to order
Reference Price (USD)
1+
$60.47000
10+
$56.91700
100+
$48.73550
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2-640506-4 male pin header by TE Connectivity AMP Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity AMP Connectors for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 36
- Number of Rows: 4
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: 0.220" (5.59mm)
- Contact Length - Post: 0.210" (5.33mm)
- Overall Contact Length: -
- Insulation Height: 0.531" (13.50mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black, Red
- Current Rating (Amps): 6A
- Voltage Rating: 250VAC
Related Products
Samtec Inc.
HTSW-104-07-SM-S
Samtec Inc.
TSM-106-04-L-SH-A
3M
2336-6221-TG
Samtec Inc.
EHF-104-01-F-D-SM-P
Sullins Connector Solutions
PEC11DBEN
Samtec Inc.
TSM-108-01-S-DH-A-003-P-TR

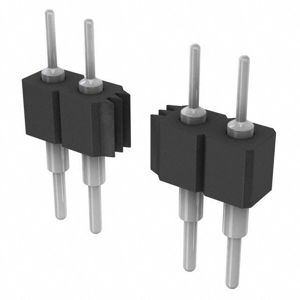

Preci-Dip
351-80-144-00-005101

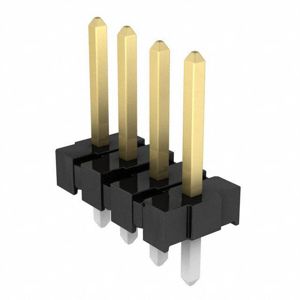

Molex
