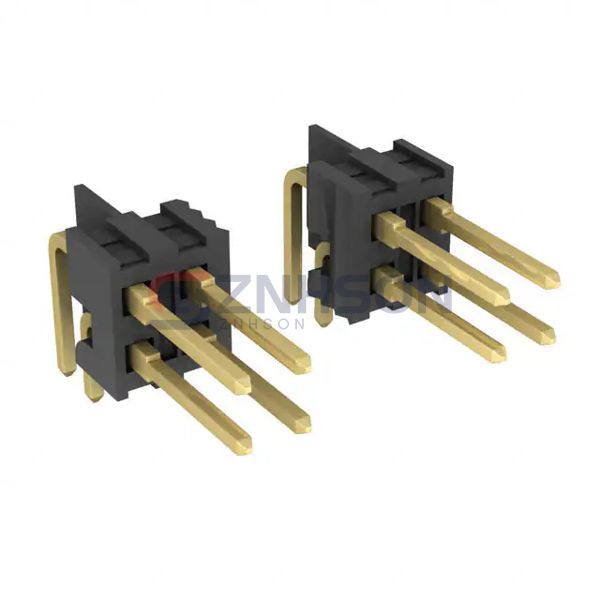

2-87230-5

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 50
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Unshrouded
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.318" (8.08mm)
• Contact Length - Post: 0.110" (2.79mm)
• Overall Contact Length: -
• Insulation Height: 0.238" (6.05mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 15.0µin (0.38µm)
• Contact Finish - Post: Gold
• Contact Material: Phosphor Bronze
• Insulation Material: Thermoplastic
• Features: -
• Operating Temperature: -65°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 3A
• Voltage Rating: -
