20021111-00014T1LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

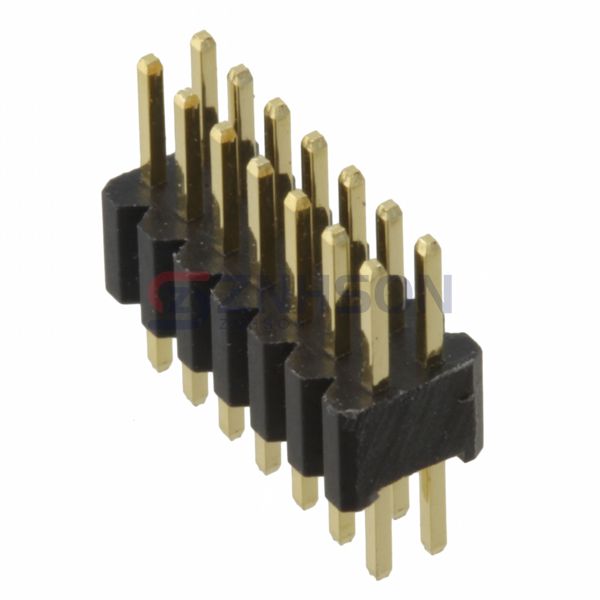

CONN HEADER VERT 14POS 1.27MM
$1.04
Available to order
Reference Price (USD)
1+
$0.77000
66+
$0.61045
132+
$0.58386
528+
$0.47773
1,056+
$0.42464
5,016+
$0.37156
10,032+
$0.35298
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 20021111-00014T1LF rectangular connector header from Amphenol ICC (FCI). These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 20021111-00014T1LF meets the highest industry standards. Amphenol ICC (FCI) provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.091" (2.30mm)
- Overall Contact Length: 0.309" (7.86mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 125VAC
