2010212012
Molex
Molex
CONN HEADER R/A 12POS 1.27MM
$2.38
Available to order
Reference Price (USD)
1+
$1.95000
51+
$1.59235
102+
$1.52000
510+
$1.26665
1,020+
$1.08570
5,049+
$0.96265
10,047+
$0.94094
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2010212012 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.213" (5.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 2.00µin (0.051µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 125V
Related Products
Samtec Inc.
TFM-115-01-S-D-A
TE Connectivity AMP Connectors
1-2132230-0
Samtec Inc.
HTSW-208-07-S-S
Samtec Inc.
TFC-140-02-L-D-K
Preci-Dip
830-80-004-20-001101
Samtec Inc.
FTSH-109-02-F-DV-A-P
Harwin Inc.
G125-MS11605L3P
Samtec Inc.

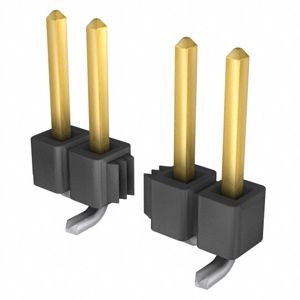

TSM-114-01-L-SV-P-TR
