2011-1X04G00S-2.9-7B-HT-P5.08
Oupiin
Oupiin

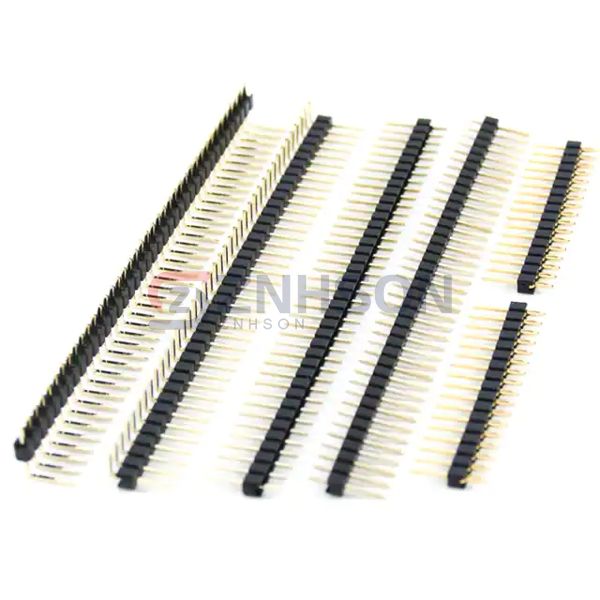

PIN HEADER, SINGLE ROW 4 PIN STR
$0.27
Available to order
Reference Price (USD)
1+
$0.27000
500+
$0.2673
1000+
$0.2646
1500+
$0.2619
2000+
$0.2592
2500+
$0.2565
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2011-1X04G00S-2.9-7B-HT-P5.08 from Oupiin is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 2011-1X04G00S-2.9-7B-HT-P5.08 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Oupiin for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.276" (7.00mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.488" (12.40mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: Pick and Place
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
