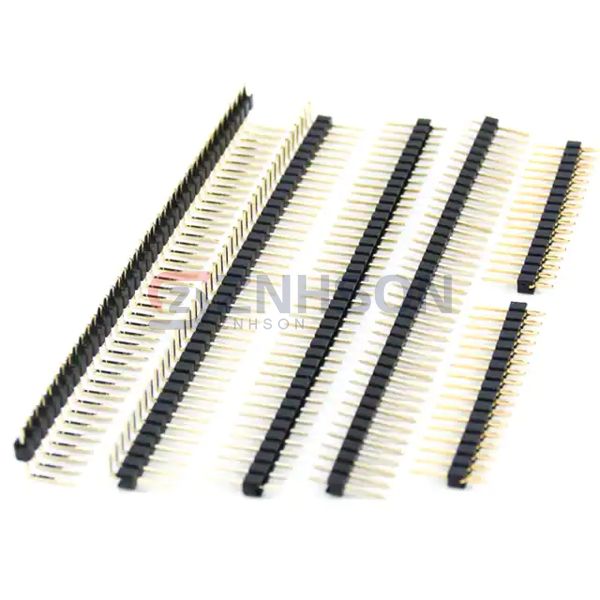

2011-1X30G00SH035B
Oupiin
Oupiin
PIN HEADER, SINGLE ROW, 30 PIN,
$0.81
Available to order
Reference Price (USD)
1+
$0.81000
500+
$0.8019
1000+
$0.7938
1500+
$0.7857
2000+
$0.7776
2500+
$0.7695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2011-1X30G00SH035B by Oupiin is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 2011-1X30G00SH035B supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Oupiin ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.457" (11.60mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-132-01-S-S-RA
Mill-Max Manufacturing Corp.
800-10-047-62-001000
Preci-Dip
832-80-046-20-001101
Samtec Inc.
BKT-119-03-L-V-A
Amphenol ICC (FCI)
77313-127-68LF
Samtec Inc.
FTS-115-03-F-DV
Samtec Inc.

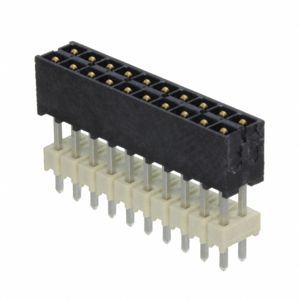

IPT1-110-04-L-D
Samtec Inc.

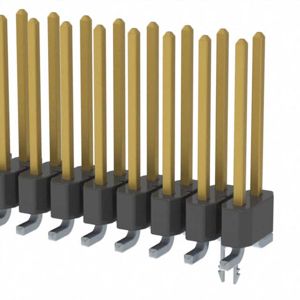

TSM-116-03-L-DV-LC
