2011-2X02G00RB
Oupiin
Oupiin

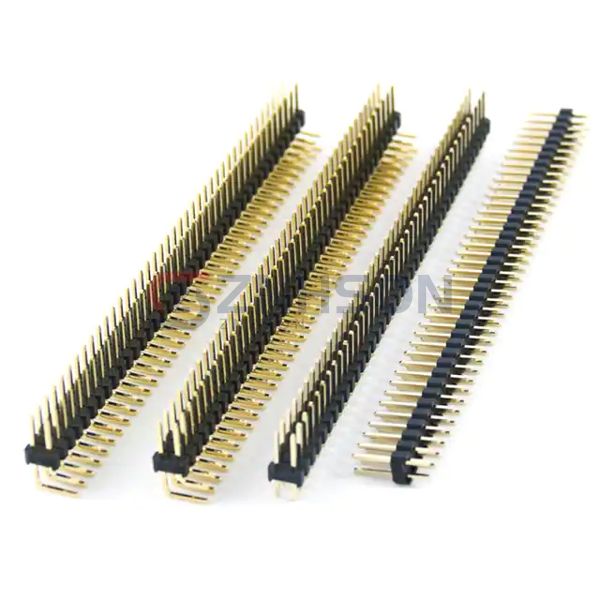

PIN HEADER, DOUBLE ROW, 2 PIN, R
$0.18
Available to order
Reference Price (USD)
1+
$0.18000
500+
$0.1782
1000+
$0.1764
1500+
$0.1746
2000+
$0.1728
2500+
$0.171
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2011-2X02G00RB by Oupiin is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 2011-2X02G00RB supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Oupiin ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.197" (5.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
