2011-2X05G00S-3.3-5.5B
Oupiin
Oupiin
PIN HEADER, DOUBLE ROW, 10 PIN,
$0.21
Available to order
Reference Price (USD)
1+
$0.21000
500+
$0.2079
1000+
$0.2058
1500+
$0.2037
2000+
$0.2016
2500+
$0.1995
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

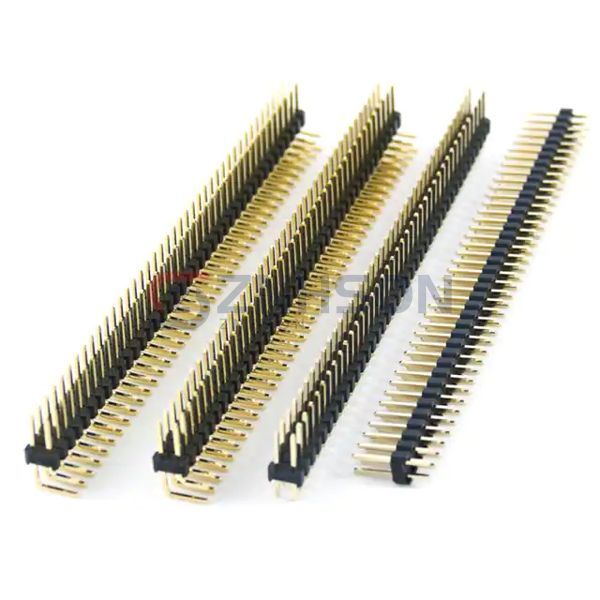

The 2011-2X05G00S-3.3-5.5B by Oupiin is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Oupiin delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.457" (11.60mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
