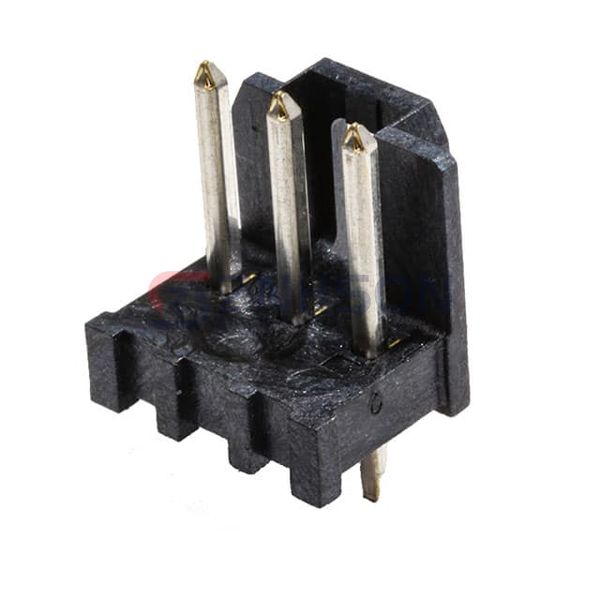

2074780003
Molex
Molex
CONN HEADER VERT 3POS 3.96MM
$0.54
Available to order
Reference Price (USD)
1+
$0.54000
500+
$0.5346
1000+
$0.5292
1500+
$0.5238
2000+
$0.5184
2500+
$0.513
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 2074780003 rectangular connector header by Molex. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 2074780003 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Molex for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: 0.693" (17.60mm)
- Insulation Height: 0.476" (12.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 350V
Related Products
Harwin Inc.
M20-9761546
JST Sales America Inc.
BH5B-XH-2(LF)(SN)
TE Connectivity AMP Connectors
6-103168-1
Samtec Inc.
HTSW-104-07-F-S
Molex
0428206224
Samtec Inc.
FTSH-102-01-L-DV-TR
Samtec Inc.
FTM-110-03-L-DV-S-TR
Samtec Inc.
FTSH-132-04-F-DH
Samtec Inc.

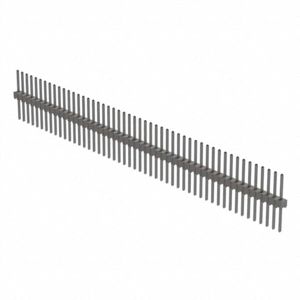

TSW-150-16-T-S
