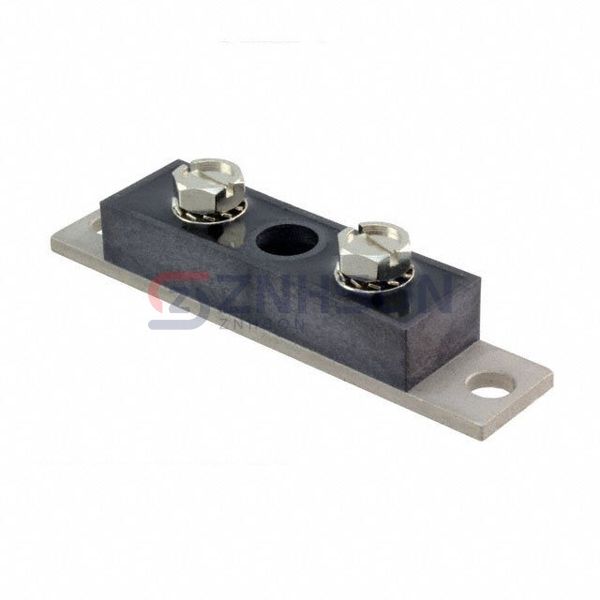

209CNQ150
SMC Diode Solutions
SMC Diode Solutions
DIODE SCHOTTKY 150V 100A PRM4
$54.91
Available to order
Reference Price (USD)
198+
$58.42157
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 209CNQ150 from SMC Diode Solutions sets new benchmarks in the Discrete Semiconductor Products market. This rectifier array incorporates advanced epitaxial growth technology for superior reverse recovery characteristics. Perfect for high-efficiency adapters, induction heating, and plasma cutting equipment, it offers outstanding thermal cycling performance. SMC Diode Solutions's rigorous quality control ensures the 209CNQ150 maintains consistent parameters across production batches for design-in reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 150 V
- Current - Average Rectified (Io) (per Diode): 100A
- Voltage - Forward (Vf) (Max) @ If: 1.03 V @ 100 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 3 mA @ 150 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Chassis Mount
- Package / Case: PRM4
- Supplier Device Package: PRM4 (Non-Isolated)
