2111-1X40G00SB
Oupiin
Oupiin
PIN HEADER, SINGLE ROW, 40 PIN,
$0.84
Available to order
Reference Price (USD)
1+
$0.84000
500+
$0.8316
1000+
$0.8232
1500+
$0.8148
2000+
$0.8064
2500+
$0.798
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

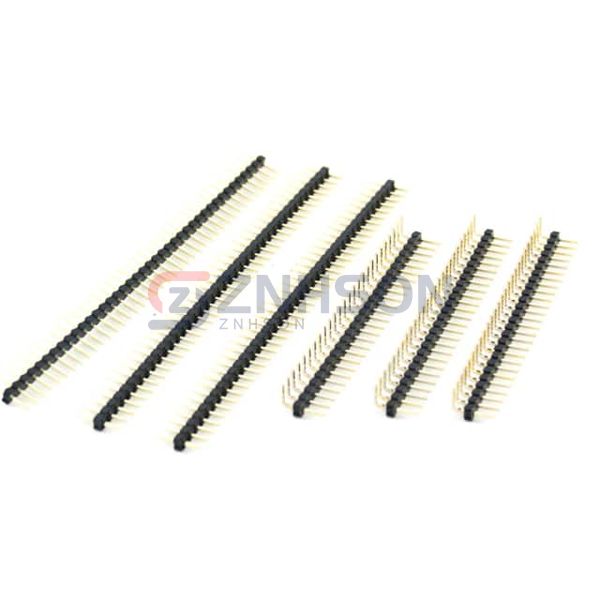

The 2111-1X40G00SB by Oupiin is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 2111-1X40G00SB supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Oupiin ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 40
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.146" (3.70mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.323" (8.20mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 125V
