2111-2X02G00R-3-6-1B
Oupiin
Oupiin

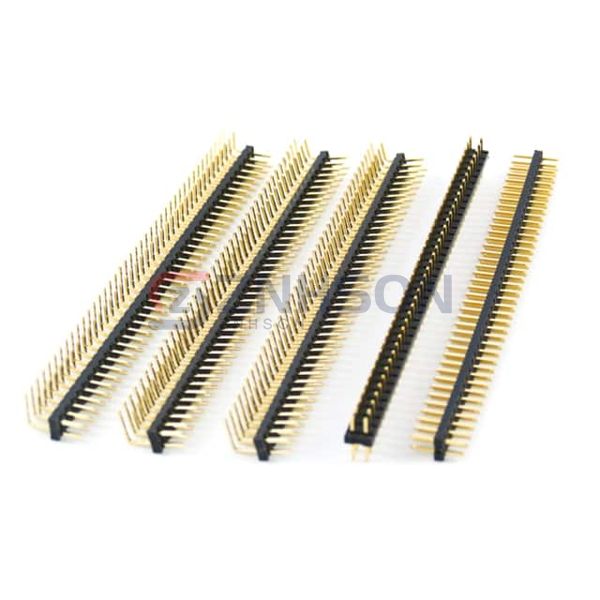

PIN HEADER, DOUBLE ROW, 4 PIN,
$0.16
Available to order
Reference Price (USD)
1+
$0.16000
500+
$0.1584
1000+
$0.1568
1500+
$0.1552
2000+
$0.1536
2500+
$0.152
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2111-2X02G00R-3-6-1B by Oupiin is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 2111-2X02G00R-3-6-1B supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Oupiin ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.157" (4.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 125V
Related Products
Samtec Inc.
TSM-102-03-T-DV-A-P-TR
Preci-Dip
802-10-018-30-001101
Samtec Inc.
BBD-124-T-A
Molex
0026481200
Samtec Inc.
TSM-105-01-G-DV-LC
Amphenol ICC (FCI)
77313-401-36LF
JST Sales America Inc.
B30B-PNDZS-1 (T) (LF)(SN)
Samtec Inc.
TSM-106-01-L-SH-P-TR
Samtec Inc.

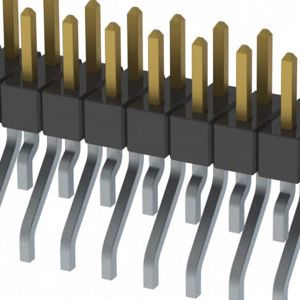

MMT-124-01-S-DH
