2114-2X12G00S/3.0/3.3/21.5B
Oupiin
Oupiin

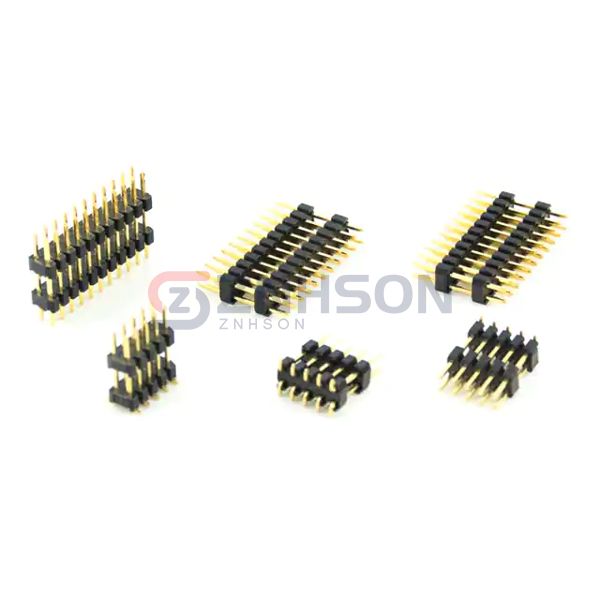

PIN HEADER, DOUBLE ROW, 24 PINS,
$1.38
Available to order
Reference Price (USD)
1+
$1.38000
500+
$1.3662
1000+
$1.3524
1500+
$1.3386
2000+
$1.3248
2500+
$1.311
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layouts with the 2114-2X12G00S/3.0/3.3/21.5B by Oupiin, a high-quality rectangular connector for board spacers and stackers. Designed for versatility, these connectors support various pitch options and mounting styles. The 2114-2X12G00S/3.0/3.3/21.5B is ideal for use in LED lighting, power supplies, and wearable technology. Specific applications include LED displays, AC/DC converters, and fitness trackers where compact and reliable connections are vital.
Specifications
- Product Status: Active
- Number of Positions: 24
- Pitch: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing: 0.079" (2.00mm)
- Length - Overall Pin: 0.846" (21.500mm)
- Length - Post (Mating): 0.130" (3.300mm)
- Length - Stack Height: 0.598" (15.200mm)
- Length - Tail: 0.118" (3.000mm)
- Mounting Type: Through Hole
- Termination: Solder
- Contact Finish - Post (Mating): Gold
- Contact Finish Thickness - Post (Mating): Flash
- Color: Black
