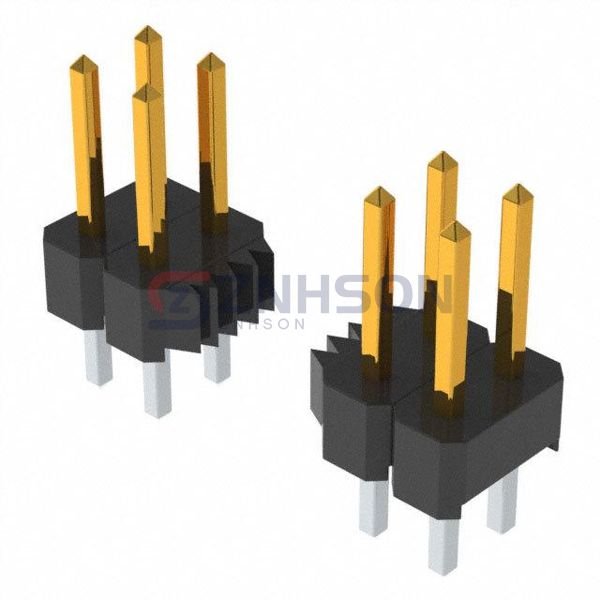

2314-6121-TG
3M
3M
CONN HEADER VERT 14POS 2.54MM
$1.39
Available to order
Reference Price (USD)
1+
$1.11000
10+
$0.97900
100+
$0.84480
500+
$0.69120
1,000+
$0.61440
5,000+
$0.53760
10,000+
$0.51072
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 2314-6121-TG rectangular connector header from 3M. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 2314-6121-TG is perfect for automotive, industrial, and consumer electronics. 3M ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.450" (11.43mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0702871204
Samtec Inc.
BBD-134-T-A
Samtec Inc.
TSW-143-23-T-D
Sullins Connector Solutions
PBC03DFEN
Samtec Inc.
TMM-116-01-S-D-SM-A-P
Preci-Dip
800-10-045-20-001101
Mill-Max Manufacturing Corp.
350-10-143-00-006000
Amphenol ICC (FCI)
57102-F06-06LF
Amphenol ICC (FCI)

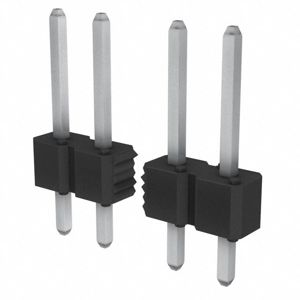

77311-424-06LF
