2336490-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
D2970 HDR 90 DEGREE 3POSN 1ROW S
$2.94
Available to order
Reference Price (USD)
1+
$2.94000
500+
$2.9106
1000+
$2.8812
1500+
$2.8518
2000+
$2.8224
2500+
$2.793
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2336490-3 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.197" (5.00mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.102" (2.60mm)
- Overall Contact Length: -
- Insulation Height: 0.346" (8.80mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Solder Retention
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 300V
Related Products
Preci-Dip
802-80-018-66-001101
Samtec Inc.
ZSS-113-09-L-D-1300
Samtec Inc.
FTE-114-03-G-DV-A-P
Preci-Dip
860-80-003-10-001101
Samtec Inc.
TSW-114-07-L-S
Molex
0347920080
Amphenol ICC (FCI)
77311-418-15LF
Molex

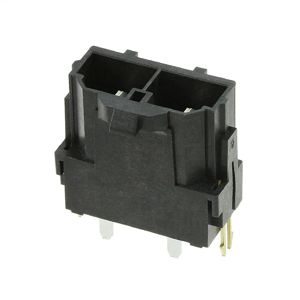

0428192234
Samtec Inc.

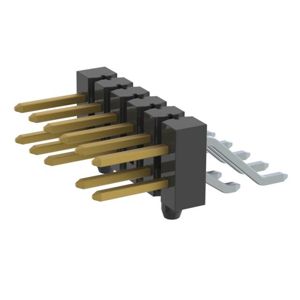

TSM-106-01-S-DH-A-005
