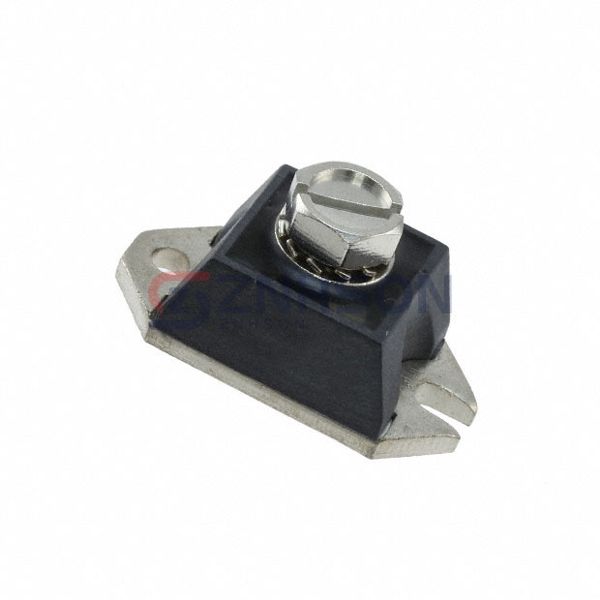

242NQ030R-1
SMC Diode Solutions
SMC Diode Solutions
240A, 30V, PRM1-1, POWER MODULES
$41.43
Available to order
Reference Price (USD)
1+
$41.43000
500+
$41.0157
1000+
$40.6014
1500+
$40.1871
2000+
$39.7728
2500+
$39.3585
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 242NQ030R-1 from SMC Diode Solutions is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. SMC Diode Solutions's dedication to quality means the 242NQ030R-1 meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 240A
- Voltage - Forward (Vf) (Max) @ If: 510 mV @ 240 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 20 mA @ 30 V
- Capacitance @ Vr, F: 11500pF @ 5V, 1MHz
- Mounting Type: Chassis Mount
- Package / Case: HALF-PAK
- Supplier Device Package: PRM1-1 (Half Pak Module)
- Operating Temperature - Junction: -55°C ~ 150°C
