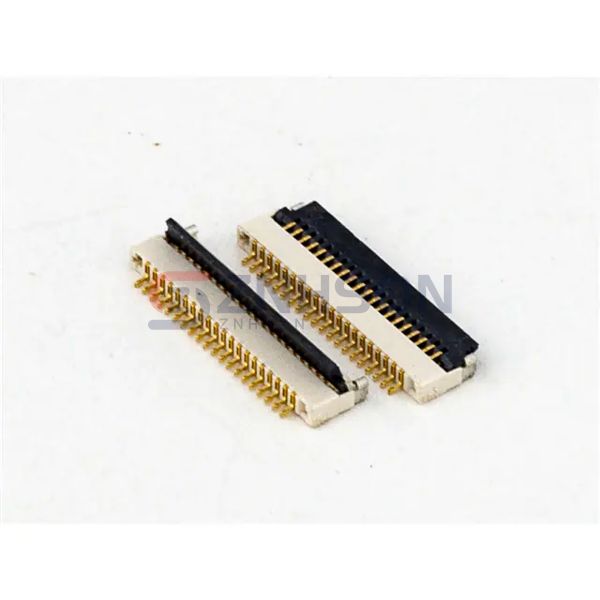

2538-B22G00DBT
Oupiin
Oupiin
FFC/FPC CONNECTOR, 22 PIN, SMD,
$1.00
Available to order
Reference Price (USD)
1+
$1.00000
500+
$0.99
1000+
$0.98
1500+
$0.97
2000+
$0.96
2500+
$0.95
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2538-B22G00DBT FFC/FPC Connectors by Oupiin redefine compact and reliable interconnects for advanced electronics. Engineered with a focus on miniaturization and high-speed data transfer, these connectors are essential for modern PCB designs. Key benefits include reduced crosstalk, enhanced mechanical stability, and broad temperature tolerance (-40 C to +105 C). From smart home systems to aerospace instrumentation, the 2538-B22G00DBT delivers consistent performance. Oupiin's innovative design prioritizes user-friendly features like tool-less locking mechanisms. Select 2538-B22G00DBT for a connector that bridges innovation and practicality in your applications.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top and Bottom
- Number of Positions: 22
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.039" (1.00mm)
- Locking Feature: Flip Lock, Backlock
- Cable End Type: Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: Liquid Crystal Polymer (LCP)
- Features: Solder Retention
- Voltage Rating: -
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
