27646402RP2
NorComp Inc.
NorComp Inc.

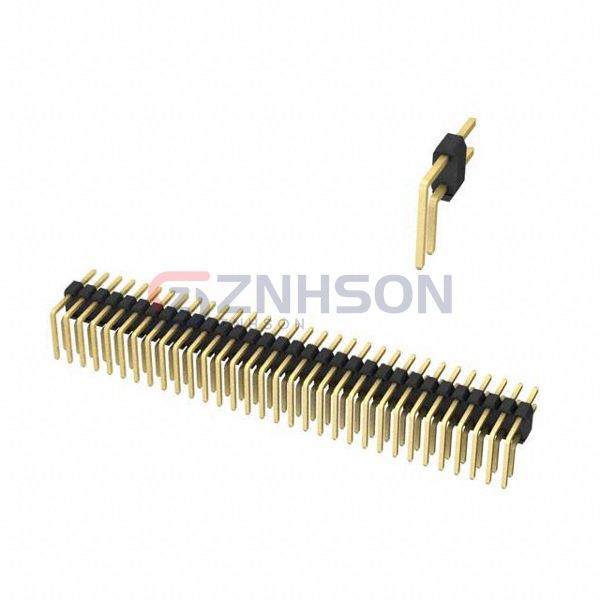

CONN HEADER R/A 64POS 2MM
$9.30
Available to order
Reference Price (USD)
1+
$8.44000
10+
$8.07300
25+
$7.33880
50+
$6.97180
100+
$6.78830
250+
$6.05440
500+
$5.68746
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 27646402RP2 by NorComp Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 27646402RP2 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. NorComp Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 64
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.158" (4.01mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
