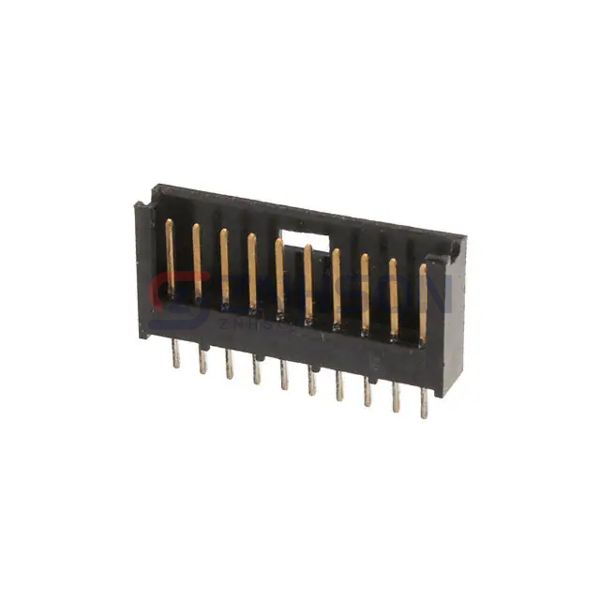

280374-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 10POS 2.54MM
$2.70
Available to order
Reference Price (USD)
1+
$2.73000
10+
$2.62300
100+
$2.18540
500+
$1.85762
1,000+
$1.58444
5,000+
$1.42054
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 280374-2 rectangular connector header from TE Connectivity AMP Connectors, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 280374-2 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.260" (6.60mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: 0.563" (14.30mm)
- Insulation Height: 0.496" (12.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 80°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 40V
